Specification
Type Horn Tweeter
Caliber of Voice Coil 1 inche
Voice Coil Impedance 20.0Ω（DC)
Max Input 6 Ｗ
Size φ100 × D180 [mm]
Weight 約 3 kg
 Field Coil Power Supply  DC 7 V / 1.06 A
Copyright (C) 2001 G.I.P.Laboratory All Rights Reserved
GIP-597A

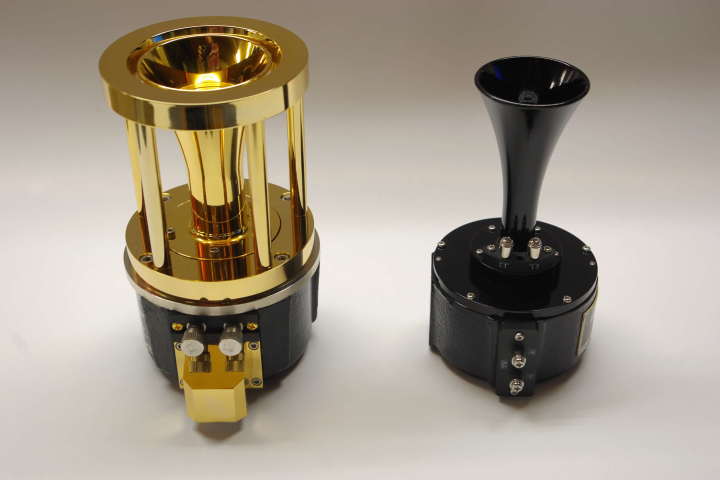

GIP-597A is reproduction product of the WE-597A, which has been called Bostwick type horn tweeter.
A special anodized alloy is adopted for its diaphragm.
Voice coil diameter is 1 inch.
The phase plug is attached in the center of the horn, the inside of the horn has a groove.
In order to emit the sound of the D # like as Western Electric when you hit the horn, we adjusted horn.
