Specifications

GIP-9101
Copyright (C) 2001 G.I.P.Laboratory All Rights Reserved

Type Compression Driver
Caliber of Voice Coil 4 inches
Impedance 24ƒ¶@/@1@KH‚š@12.5ƒ¶[‚c‚b]
Max Input 25@‚v
Caliber of Throat  2@inches
Size ‚v220~‚g270~‚c200@m‚‚n
Weight Roughly 40@‚‹‚‡
 Field Coil Power Supply  ‚c‚b24‚u@/@1.0@‚`

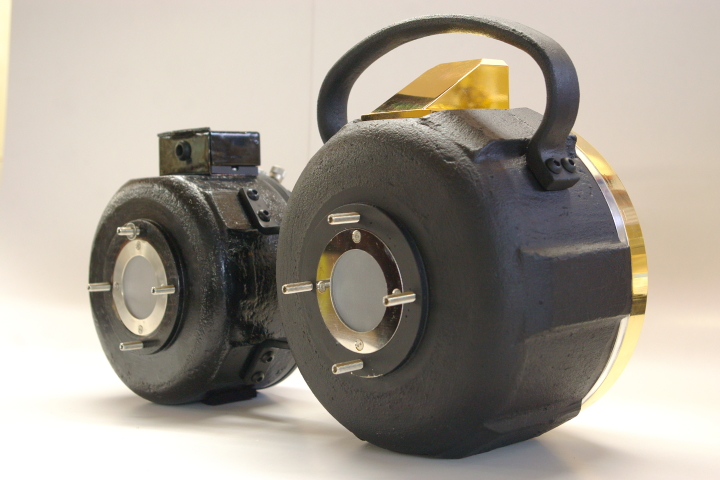

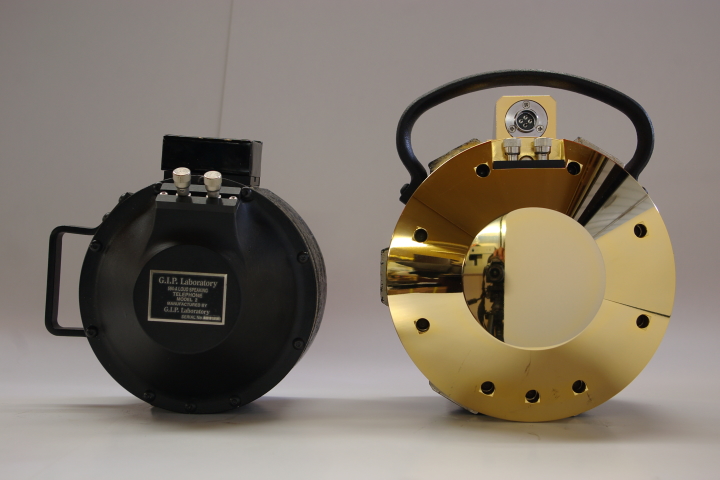

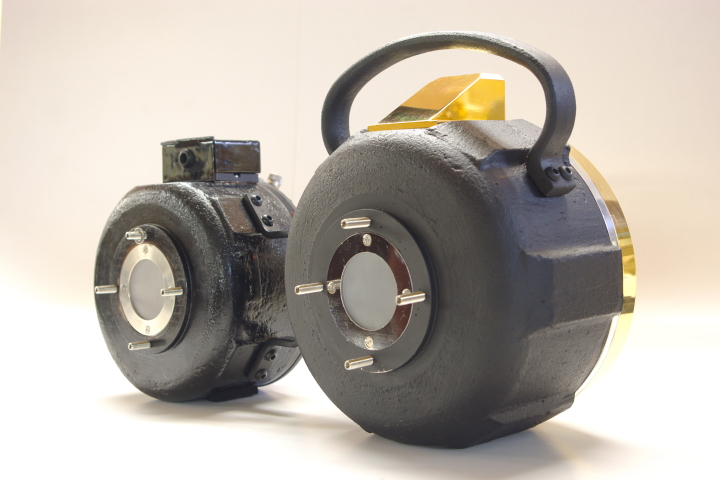

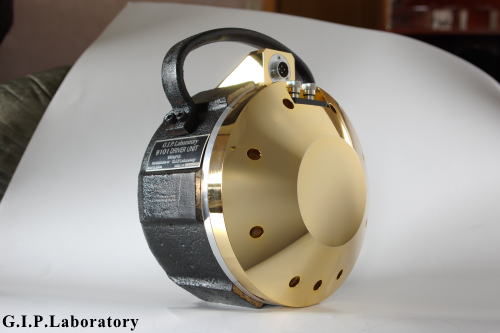

By using the permendur containing ultra-pure iron and cobalt by 50 percent each as its magnetic circuit, GIP-9101 achieves very high resolution and sound efficiency.

It has a characteristic to be able to replay wide frequency range also. The high-frequency response of GIP-9101 makes us feel the no need of a tweeter, and depending on the horn is equipped with a low-frequency response that can be used from 200Hz.

GIP-9101 is allowed to both the rich sense of color and high-resolution, is inherited the pedigree of WE-594A. It is a super-strong driver that far exceeds the expectations that come from the appearance of about 40 kg.
